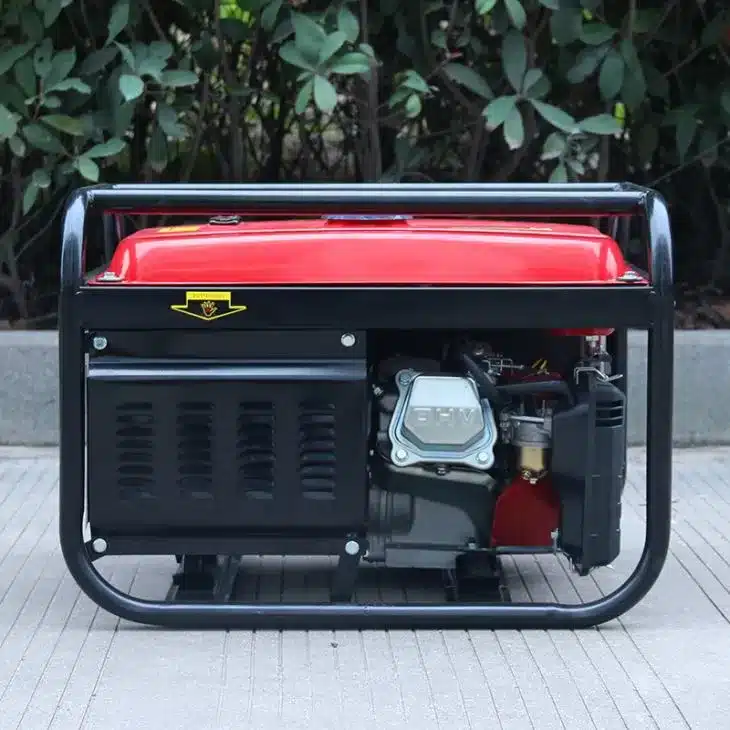

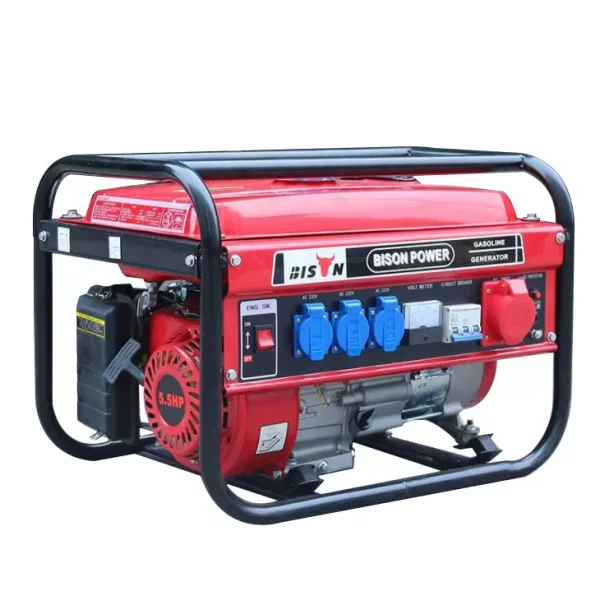

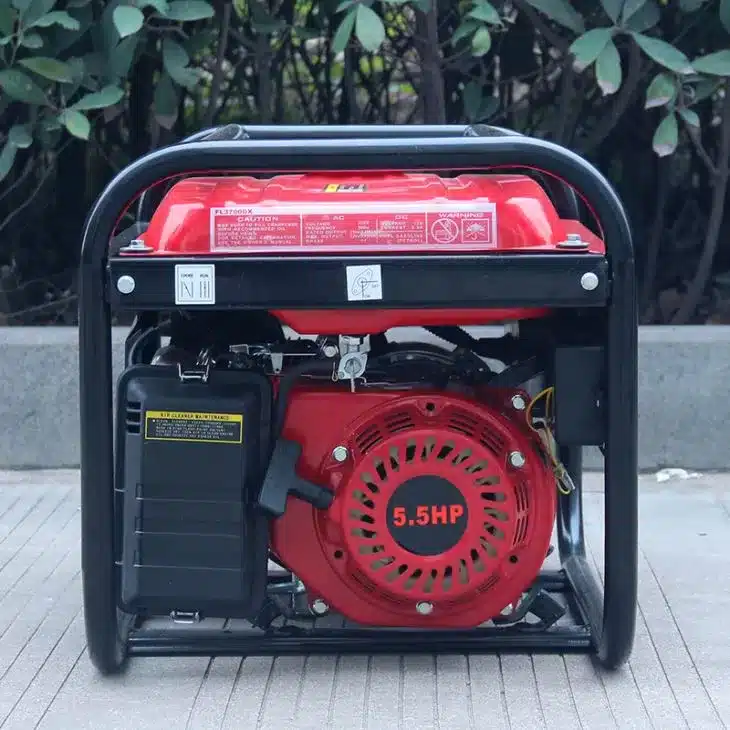

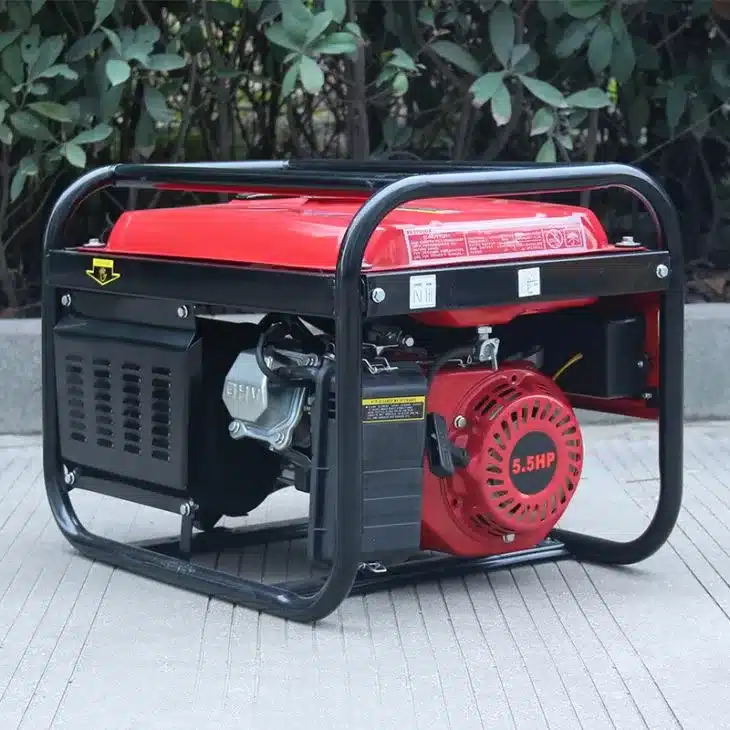

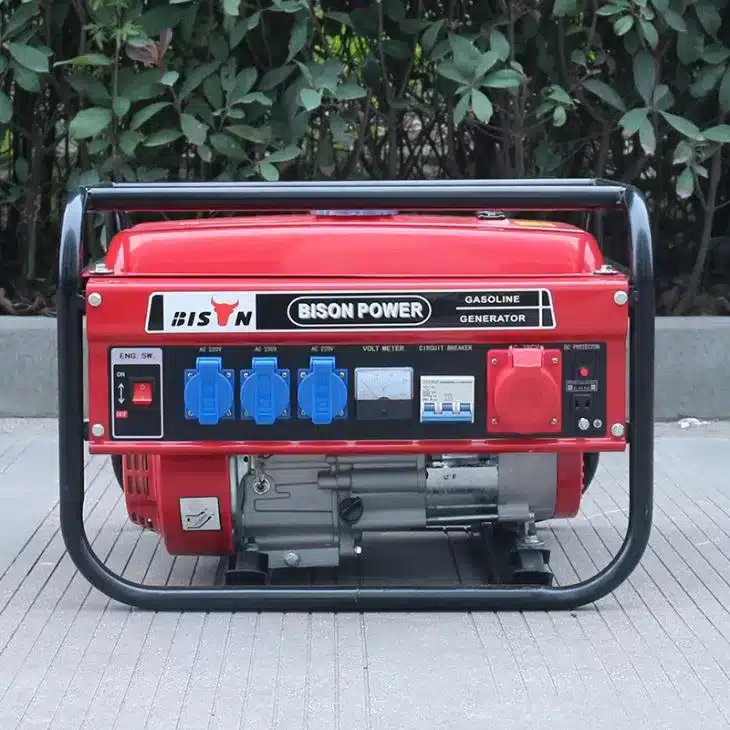

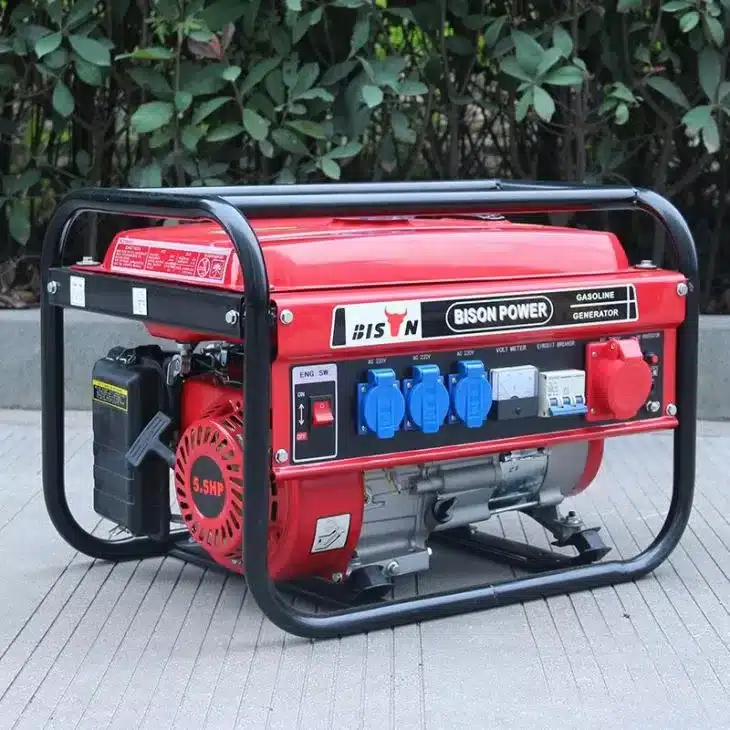

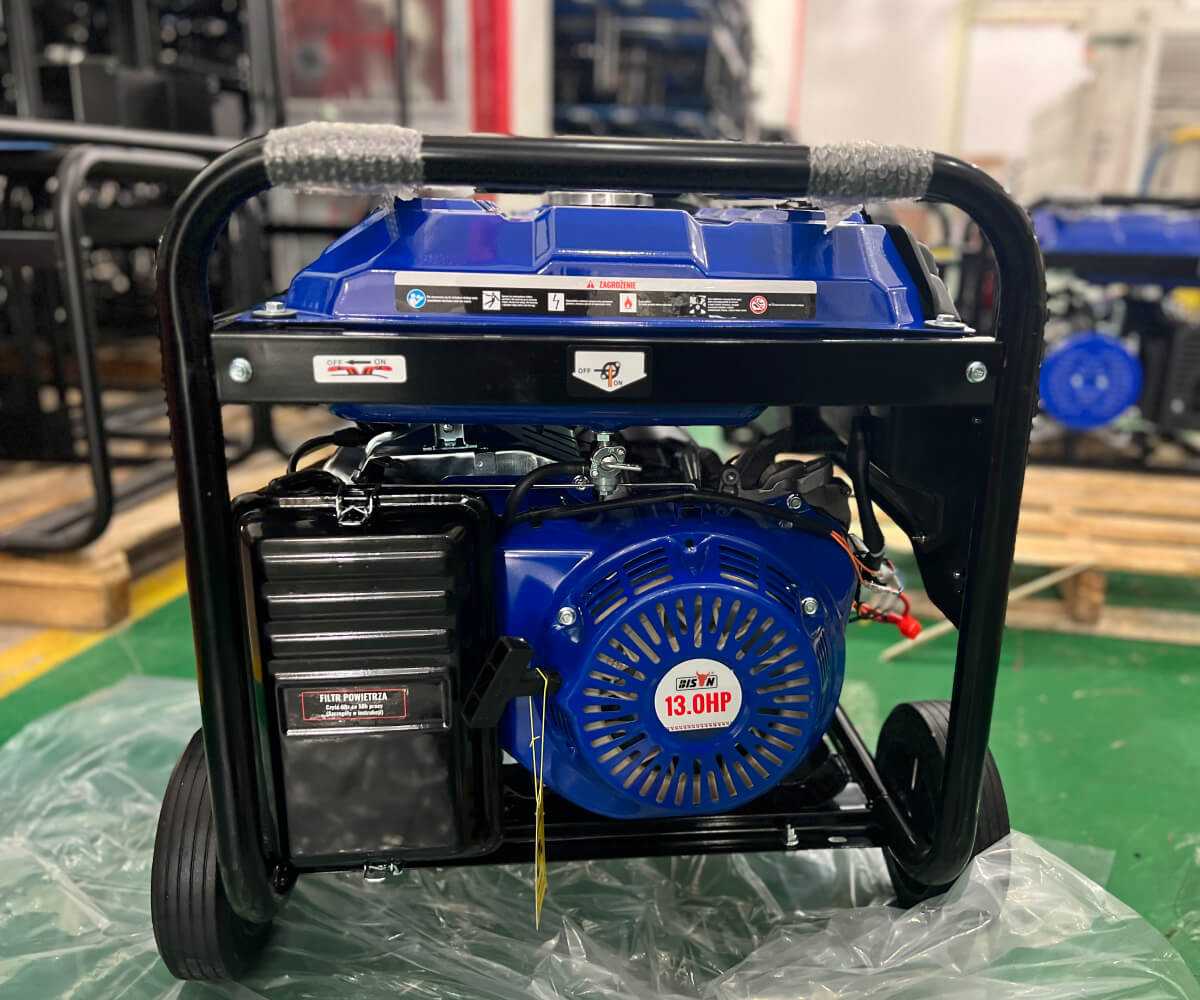

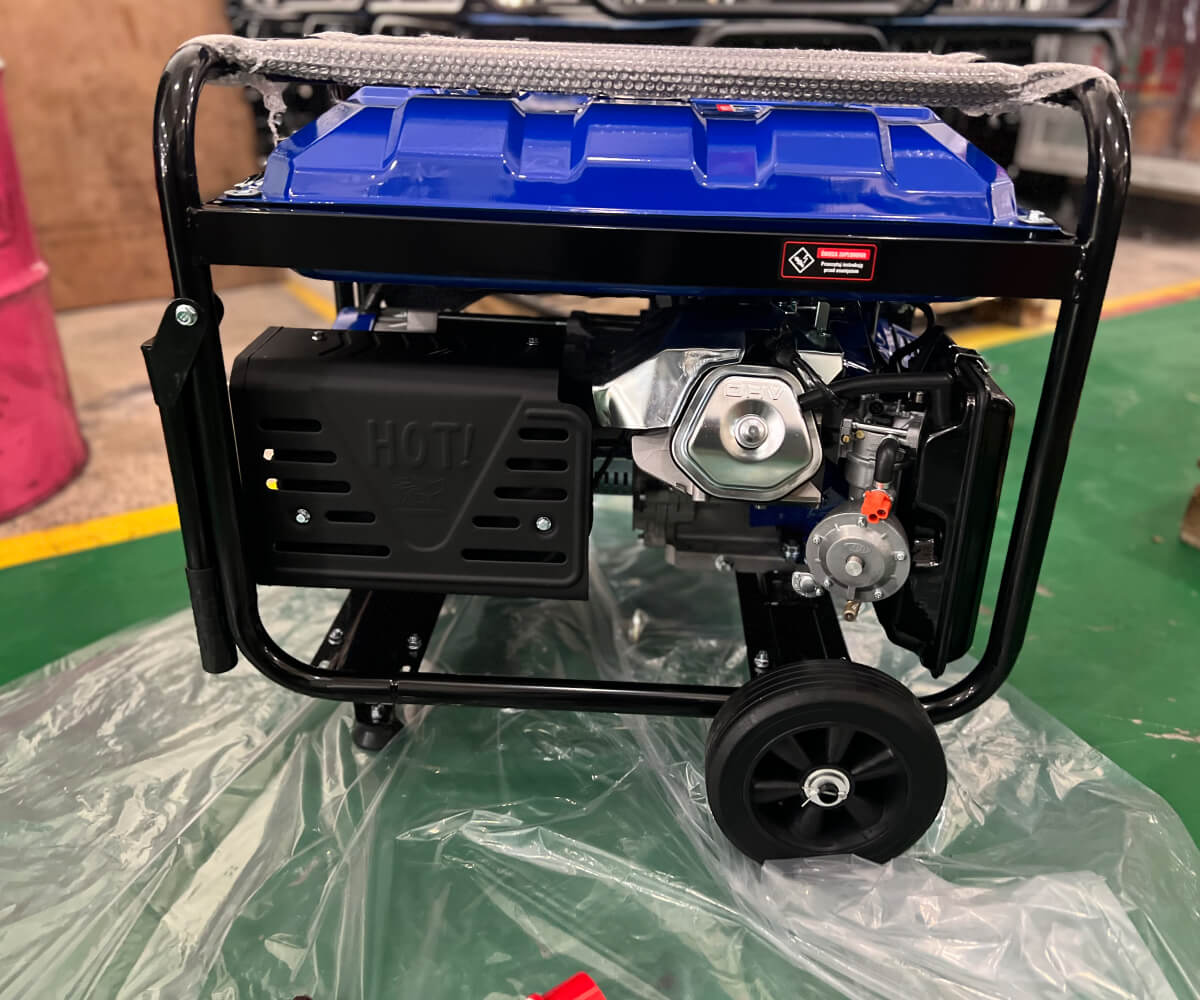

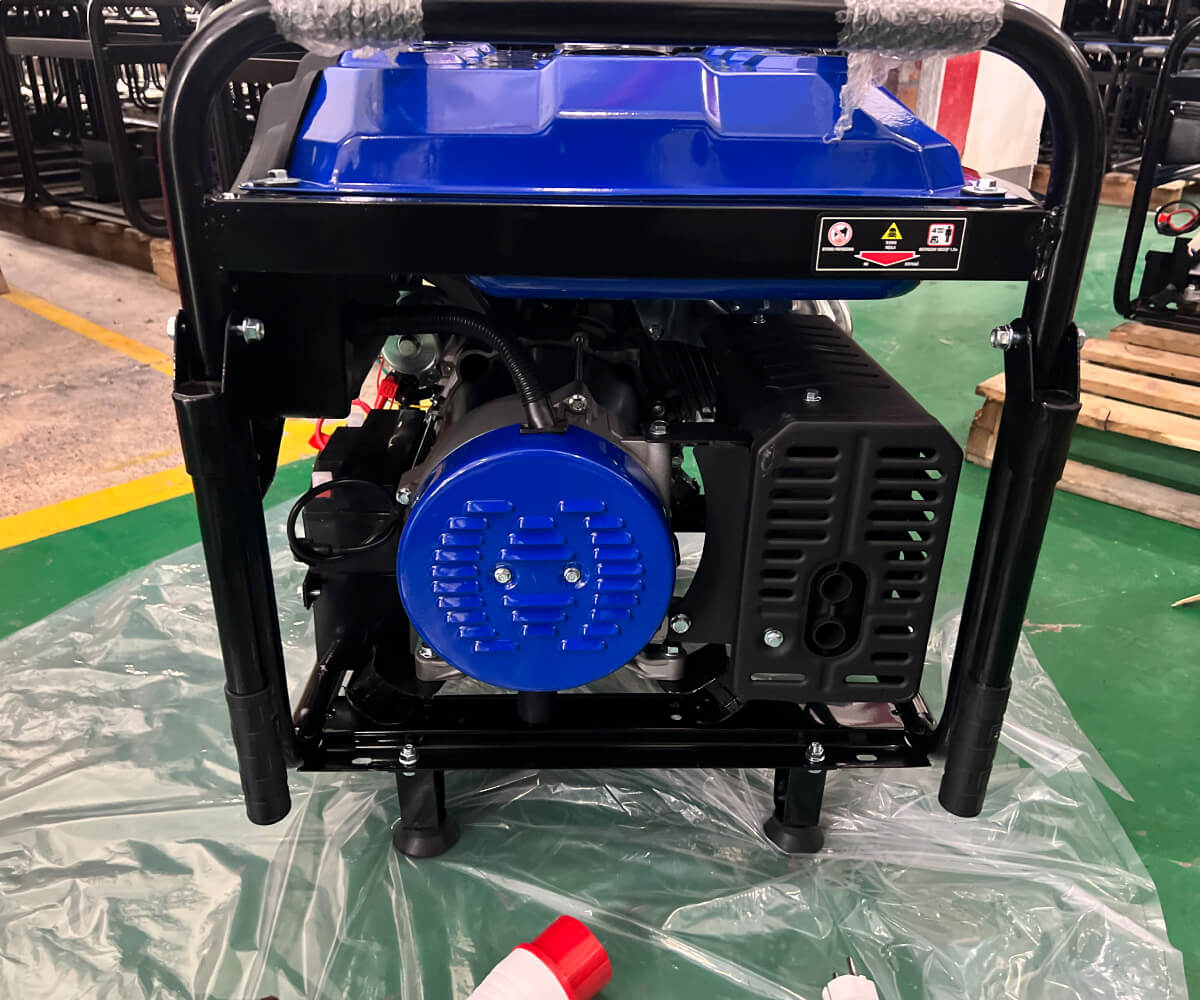

natural gas fual fuel 7500 watt generator





no brand | 30 sets |
OEM standard | 50 sets |
OEM special | 100 sets |
BS9500 Specifications
model | BS9500 |
---|---|
Maximum Power of the Generator (KW) | 8500 W |
Rated Power of the Generator (KW) | 7500W |
Rated output voltage (Volt) | 1 Phase / 3 Phases (Optional) |
Over Load Protector (OLP) | YES |
Rated frequency (Hz) | 50 / 60 Hz |
Rated Current (Amp) | Depends On Your Socket And Generator Power |
Power factor | 1.0 (Single Phase) / 0.8 (Three Phases) |
Fuel Tank Capacity | 25L |
Fuel option | #92, #95 Unleaded Gasoline |
Socket rating | 16A/32A |
Self start motor | Recoil start/Electric start |
Fuel consumption at 100% Load | 3.48kg/h |
Fuel consumption at 75% Load | 2.8kg/h |
Fuel consumption at 50% Load | 2.1kg/h |
Continuous Duration of operation at Rated load (hour) | 5.1 |
Ignition system | T.C.I |
Noise Level (dB) at rated load (from 4-meter distance) | 95 |
Engine & Emission Specifications | |
---|---|
Engine Model | BS192F |
Fuel Type | Gasoline |
Engine Speed | 3000(50 Hz) / 3600(60 Hz) RPM |
Bore × Stroke | 92*66mm |
Engine Displacement | 440cc |
Engine/Motor Type | 1-Cylinder, Air-Cooled, 4-Stroke, Direct Injected,OHV |
Engine Oil grade | #5W-40 |
Fuel Capacity | 1.1L |
Low Oil Shutdown/Alert | Yes |
Recoil Start | Yes |
Electric Start | Optional |
alternator | |
---|---|
Type of alternator | 100% Copper (Corrective Wave) |
Rotor RPM | 3000 |
Alternator Size | 190*165mm |
products description
As a professional generator manufacturer, factory, and manufacturing company, BISON delivers natural gas dual fuel 7500 watt generators designed for generator dealers who value performance, adaptability, and durability.
What is the natural gas dual fuel generator?
Natural gas dual fuel system can use two types of fuels in a mixture at the same time. Seamlessly switch between natural gas and propane. It usually starts with one fuel, and the governor built in the system gradually adds auxiliary fuel sources until the two fuels are optimally mixed to realize efficient operation. Like a dual fuel system, a dual fuel engine can usually operate with only one fuel source without another fuel source.
Top attributes of natural gas 7500 watt generator
- Our company adopts the new technology to produce this natural gas dual fuel 7500 watt generator that the brushless motor with all copper movement is available to provide a good electrical conductivity.
- Pure copper wired winding, with permanent magnet built in, ensures motor not magnetic.
- Computer program control to test voltage directly in the socket of the panel can reduce the risk of damage to the connecting device and improve the lighting flicker. The super silent design is a great selling point for it.
- The generator is mainly composed of a stator, a rotor, an end cover, a brush, a base and a bearing. It has strong resistance to harsh environment, which is in accordance with international electrical committee standards.
- Owing to its small size, flexibility, light weight, complete set, easy operation and maintenance, this natural gas dual fuel 7500 watt generator is widely used in mines, railways, field sites, road traffic maintenance, and factories, enterprises, hospitals, etc. as a backup power or temporary power supply. At the same time, this small generator set can also be used as a small mobile power station, and it is used as a backup power source for many enterprises.
Benefits of dual fuel 7500 watt generator
- Efficiency: the biggest advantage of a dual-fuel system is that it always uses the suit fuel to perform tasks.
- Sustainability: dual-fuel generators can significantly reduce the amount of particulate matter, carbon dioxide and other emissions released into the atmosphere. They can also help to recover flare gas and utilize by-products that would otherwise be wasted.
- Cost saving: Compared with a single fuel system, the difference of fuel cost can be as high as 50%. Longer running time:
- During a long power outage, operators cannot rely on gasoline fuel so much, use the LPG as well too, thus making critical applications run longer.
BISON’s advanced manufacturing facilities utilize advanced techniques and stringent quality control processes to ensure the 7500 watt generator meets the highest standards of performance and durability. Additionally, we provide exceptional support to our dealer network, including detailed product training and responsive technical assistance, ensuring your success in the marketplace. Dual fuel options that reduce emissions and energy consumption, align with global sustainability goals. Contact BISON sales team for the dealer price.
A class core parts

100% all-copper motor
Offering durability and superior energy efficiency

Domestic top carburetor
high atomization level, ensuring optimal fuel efficiency and smooth engine operation.

Powerful pull plate
Easy to start pull plate, guarantee more than 10,000 pulls

robust frames
Professional welding and painting process to ensure the beauty and stability of the rack
tight quality contorl

natural gas fual fuel 7500 watt generator assembly process
- Use special equipment to assemble, ensure the beaning, oil seal, governor gear effectively fit
- When assembling nuts for each muffler, spring pads need to be installed to ensure the fit of each component and the maximum noise reduction effect
- Use a special air gun, and use different torque standards for different parts
- Water test is required in each engine assembly to ensure the tightness of itself
- Pay attention to small details, add thread glue and spring washers to the bolts; add support feet to the motor bracket
- More than 20 debugging processes throughout the whole process to ensure that the machine 100% meets the factory requirements

natural gas fual fuel 7500 watt generator inspection process
Inspection process leaves no room for compromise, ensuring that every gasoline generator we produce is flawless.
- Water test: Ensures 100% cylinder tightness, detecting any possible leaks.
- Unit comprehensive intelligent test cabinet: Each generator undergoes a full inspection to confirm reliability and accuracy.
- Withstand voltage tester inspection: Every generator is fully inspected, ensuring precise electrical safety measurements.
- Strengthened laboratory standards: Our lab exceeds national sampling standards, resulting in superior product durability.
Professional technicians with 15-20 years of experience

Performance Commissioning

Machine Assembly

Artwork QA

Full Inspection

Generator Specialized Inspection

Parts assembly

Core Assembly

Power Specialized Inspection
Warranty Information

Discounted Accessories

24-hour online, 5-minute response

Engineer on-site service
Packaging & Delivery
Packaging details: brown strong carton, generator is protected with poly bag, wooden, 1pc / carton. Lead Time: Shipped in 25 days after payment.
